xvr2::ReadableStream Class Reference

#include <StreamInterface.h>

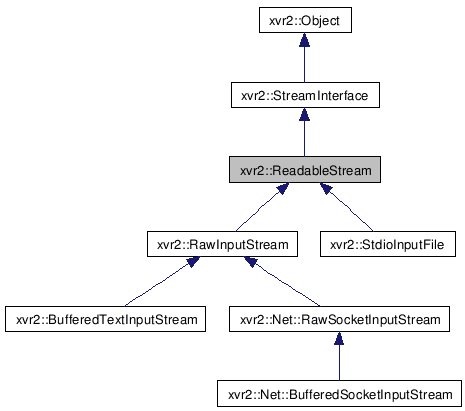

Inheritance diagram for xvr2::ReadableStream:

[legend]

List of all members.

---

Detailed Description

Implements readable/input streams.

Considerations 1. Readable streams ARE NOT flushable, that is since they are considered input devices there is no input to push down the pipe. 2. When subclassing sometimes is enough to just implement the UInt32 ReadableStream::read(void *data, UInt32 size) method. 3. Also you must provide an open method which takes a String as a parameter which specifies the stream "address", that address can be a filesystem path or any other address which your implmentation is meant to handle.

Definition at line 56 of file StreamInterface.h.

Public Member Functions
	ReadableStream ()
virtual ReadableStream &	operator>> (UInt32 n)
virtual ReadableStream &	operator>> (double n)
virtual ReadableStream &	operator>> (UInt64 n)
UInt32	read (UInt32 n)
UInt32	read (double n)
UInt32	read (UInt64 n)
virtual UInt32	read (void *data, UInt32 size)=0
virtual UInt32	read (Buffer &data, UInt32 size)
virtual ReadableStream &	read (Buffer &b)
	Reads all data starting from the current position to the end of the file and returns it in a Buffer object.
virtual ReadableStream &	readAll (Buffer &b)
	Loads the full contents and returns it in a Buffer.
virtual void	flush ()
virtual void	setTimeout (int millisecs)
virtual void	open (const String &path)=0
virtual void	close ()=0
virtual bool	opened ()=0
virtual FileSizeT	size ()=0
virtual FileOffsetT	tell ()=0
virtual void	seek (FileOffsetT _pos)=0
virtual void	seekEnd ()=0
virtual void	seekBegin ()=0
virtual void	seekStep (FileOffsetT _step)=0
virtual bool	eof ()=0
virtual const char *	getClassName ()
	Returns the name of the current class.
virtual std::string	toString ()
Static Public Member Functions
static void	debugmsg (Object *obj, const char *msg, int linenumber=__LINE__, const char *srcfile=__FILE__)
	Will print a debug message to the screen.
static void	debugmsgln (Object *obj, const char *msg, int linenumber=__LINE__, const char *srcfile=__FILE__)
Protected Attributes
bool	handles_timeouts
int	timeout_msecs
std::string	__cls_name
Friends
std::ostream &	operator<< (std::ostream &stream, const Object &s)

---

Constructor & Destructor Documentation

xvr2::ReadableStream::ReadableStream

(

)

[inline]

Definition at line 61 of file StreamInterface.h.

References handles_timeouts, and timeout_msecs.

---

Member Function Documentation

virtual ReadableStream& xvr2::ReadableStream::operator>>

(

UInt32

n

)

[virtual]

virtual ReadableStream& xvr2::ReadableStream::operator>>

(

double

n

)

[virtual]

virtual ReadableStream& xvr2::ReadableStream::operator>>

(

UInt64

n

)

[virtual]

UInt32 xvr2::ReadableStream::read

(

UInt32

n

)

UInt32 xvr2::ReadableStream::read

(

double

n

)

UInt32 xvr2::ReadableStream::read

(

UInt64

n

)

virtual UInt32 xvr2::ReadableStream::read	(	void *	data,
		UInt32	size
	)			[pure virtual]

Implemented in xvr2::RawInputStream, xvr2::StdioInputFile, and xvr2::Net::RawSocketInputStream.

virtual UInt32 xvr2::ReadableStream::read	(	Buffer &	data,
		UInt32	size
	)			[virtual]

Reimplemented in xvr2::StdioInputFile.

virtual ReadableStream& xvr2::ReadableStream::read

(

Buffer &

b

)

[virtual]

Reads all data starting from the current position to the end of the file and returns it in a Buffer object.

Reimplemented in xvr2::StdioInputFile.

virtual ReadableStream& xvr2::ReadableStream::readAll

(

Buffer &

b

)

[virtual]

Loads the full contents and returns it in a Buffer.

Reimplemented in xvr2::StdioInputFile.

virtual void xvr2::ReadableStream::flush

(

)

[virtual]

Implements xvr2::StreamInterface.

Reimplemented in xvr2::StdioInputFile.

virtual void xvr2::ReadableStream::setTimeout

(

int

millisecs

)

[inline, virtual]

Definition at line 79 of file StreamInterface.h.

References timeout_msecs.

virtual void xvr2::StreamInterface::open

(

const String &

path

)

[pure virtual, inherited]

Implemented in xvr2::Log, xvr2::RawInputStream, xvr2::RawOutputStream, xvr2::StdioInputFile, xvr2::StdioOutputFile, xvr2::Net::RawSocketInputStream, and xvr2::Net::RawSocketOutputStream.

virtual void xvr2::StreamInterface::close

(

)

[pure virtual, inherited]

Implemented in xvr2::Log, xvr2::RawInputStream, xvr2::RawOutputStream, xvr2::StdioInputFile, xvr2::StdioOutputFile, xvr2::Net::RawSocketInputStream, and xvr2::Net::RawSocketOutputStream.

virtual bool xvr2::StreamInterface::opened

(

)

[pure virtual, inherited]

Implemented in xvr2::RawStreamInterface, xvr2::StdioInputFile, and xvr2::StdioOutputFile.

virtual FileSizeT xvr2::StreamInterface::size

(

)

[pure virtual, inherited]

Implemented in xvr2::RawOutputStream, xvr2::RawStreamInterface, xvr2::StdioInterface, and xvr2::Net::RawSocketOutputStream.

virtual FileOffsetT xvr2::StreamInterface::tell

(

)

[pure virtual, inherited]

Implemented in xvr2::RawStreamInterface, and xvr2::StdioInterface.

virtual void xvr2::StreamInterface::seek

(

FileOffsetT

_pos

)

[pure virtual, inherited]

Implemented in xvr2::RawInputStream, xvr2::StdioInterface, xvr2::StdioOutputFile, xvr2::WriteableStream, and xvr2::Net::RawSocketInputStream.

virtual void xvr2::StreamInterface::seekEnd

(

)

[pure virtual, inherited]

Implemented in xvr2::RawInputStream, xvr2::StdioInterface, xvr2::StdioOutputFile, xvr2::WriteableStream, and xvr2::Net::RawSocketInputStream.

virtual void xvr2::StreamInterface::seekBegin

(

)

[pure virtual, inherited]

Implemented in xvr2::RawInputStream, xvr2::StdioInterface, xvr2::StdioOutputFile, xvr2::WriteableStream, and xvr2::Net::RawSocketInputStream.

virtual void xvr2::StreamInterface::seekStep

(

FileOffsetT

_step

)

[pure virtual, inherited]

Implemented in xvr2::RawInputStream, xvr2::StdioInterface, xvr2::StdioOutputFile, xvr2::WriteableStream, and xvr2::Net::RawSocketInputStream.

virtual bool xvr2::StreamInterface::eof

(

)

[pure virtual, inherited]

Implemented in xvr2::RawInputStream, xvr2::RawOutputStream, xvr2::StdioInterface, xvr2::StdioOutputFile, xvr2::Net::RawSocketInputStream, and xvr2::Net::RawSocketOutputStream.

virtual const char* xvr2::Object::getClassName

(

)

[virtual, inherited]

Returns the name of the current class.

static void xvr2::Object::debugmsg	(	Object *	obj,
		const char *	msg,
		int	linenumber = __LINE__,
		const char *	srcfile = __FILE__
	)			[static, inherited]

Will print a debug message to the screen.

static void xvr2::Object::debugmsgln	(	Object *	obj,
		const char *	msg,
		int	linenumber = __LINE__,
		const char *	srcfile = __FILE__
	)			[static, inherited]

virtual std::string xvr2::Object::toString

(

)

[virtual, inherited]

Reimplemented in xvr2::Buffer, xvr2::Byte, xvr2::Exception, xvr2::Date, xvr2::Group, xvr2::String, xvr2::User, xvr2::Vector< _Tp, _Alloc >, xvr2::Text::MD5Hash, xvr2::Net::IPv4Address, xvr2::Net::OldTCPSocket, xvr2::Net::URI, xvr2::Platform::CPU, and xvr2::Vector< xvr2::PipelineFilter * >.

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	stream,
		const Object &	s
	)			[friend, inherited]

---

Member Data Documentation

bool xvr2::ReadableStream::handles_timeouts [protected]

Definition at line 58 of file StreamInterface.h.

Referenced by ReadableStream().

int xvr2::ReadableStream::timeout_msecs [protected]

Definition at line 59 of file StreamInterface.h.

Referenced by ReadableStream(), and setTimeout().

std::string xvr2::Object::__cls_name [protected, inherited]

Definition at line 30 of file Object.h.

---

The documentation for this class was generated from the following file:

• /home/coredumped/X-VR2_Trunk/Core/xvr2/StreamInterface.h
